每天进步一点点006-etcd windows集群环境

Preface

之前的环境比较复杂:我主机是windows,centos是vmware里面的虚拟机,docker又是centos里面的。
之前是打算在基于centos的docker搭建一个etcd本地集群来开发用,用作测试分布式服务发现,当然也可以用作分布式数据存储。
分布式数据存储也可以使用redis,在分布式数据存储这一点上etcd和redis各自的优缺点是啥,需要后面调查和验证一下。
在此略过。

Contents

分布式服务最少都是3个起步,都是奇数个,以匹配raft选举策略,所以需要配置3个服务。

配置文件

以下分别是1,2,3号etcd服务的配置文件:

1
2
3
4
5
6
7
8
9
name: etcd01
data-dir: .\data\etcd01
advertise-client-urls: http://127.0.0.1:2379
listen-client-urls: http://127.0.0.01:2379
listen-peer-urls: http://127.0.0.1:2380
initial-advertise-peer-urls: http://127.0.0.1:2380
initial-cluster-token: etcd-cluster-1
initial-cluster: etcd01=http://127.0.0.1:2380,etcd02=http://127.0.0.1:2381,etcd03=http://127.0.0.1:2382
initial-cluster-state: new
1
2
3
4
5
6
7
8
9
name: etcd02
data-dir: .\data\etcd02
advertise-client-urls: http://127.0.0.1:3379
listen-client-urls: http://127.0.0.01:3379
listen-peer-urls: http://127.0.0.1:2381
initial-advertise-peer-urls: http://127.0.0.1:2381
initial-cluster-token: etcd-cluster-1
initial-cluster: etcd01=http://127.0.0.1:2380,etcd02=http://127.0.0.1:2381,etcd03=http://127.0.0.1:2382
initial-cluster-state: new
1
2
3
4
5
6
7
8
9
name: etcd03
data-dir: .\data\etcd03
advertise-client-urls: http://127.0.0.1:4379
listen-client-urls: http://127.0.0.01:4379
listen-peer-urls: http://127.0.0.1:2382
initial-advertise-peer-urls: http://127.0.0.1:2382
initial-cluster-token: etcd-cluster-1
initial-cluster: etcd01=http://127.0.0.1:2380,etcd02=http://127.0.0.1:2381,etcd03=http://127.0.0.1:2382
initial-cluster-state: new

启动脚本

1
2
etcd --config-file=F:/software/etcd-v3.4.0-windows-amd64/etcd01.yml
pause

启动结果

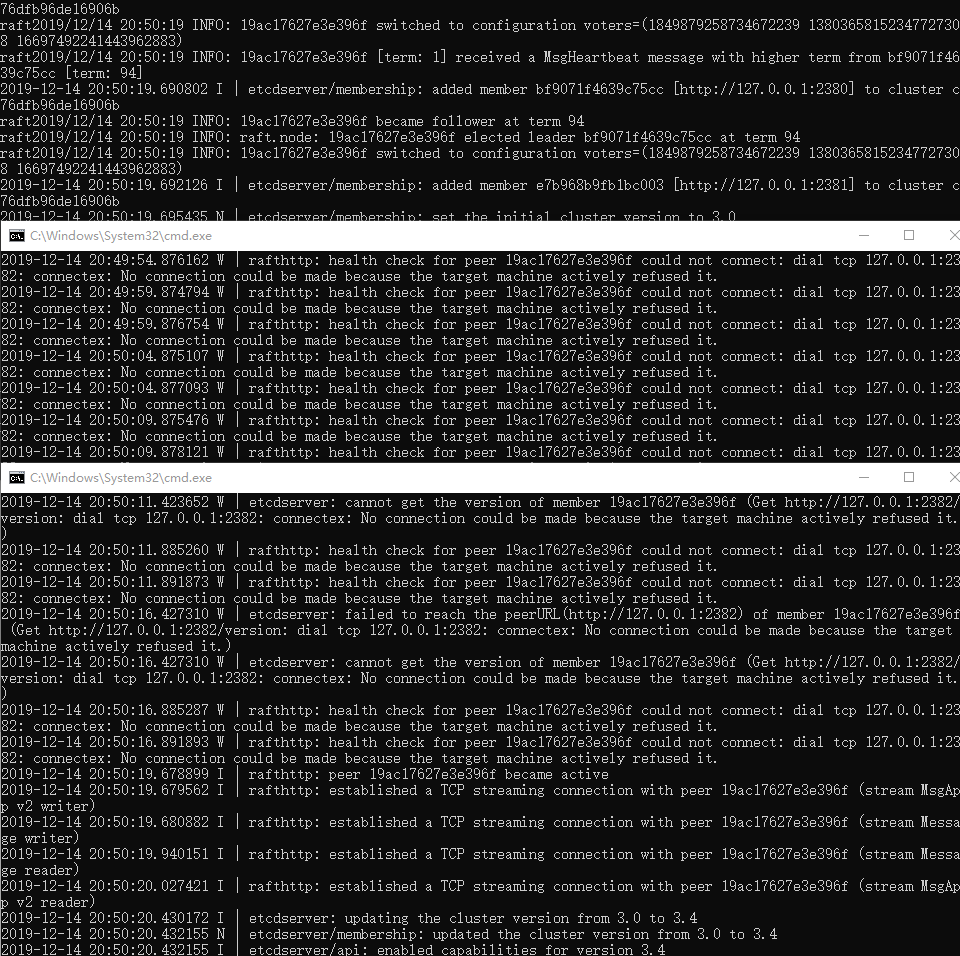

启动结果1
查看一下结果:
启动结果2
最后一个false是啥意思:

1
etcdctl help member list

NAME:
member list - Lists all members in the cluster
USAGE:
etcdctl member list [flags]
DESCRIPTION:
When –write-out is set to simple, this command prints out comma-separated member lists for each endpoint.
The items in the lists are ID, Status, Name, Peer Addrs, Client Addrs, Is Learner.

最后那个boolean值得代表的意思是是否是learner,learner是区别与master与follower的角色,具体干啥的可以参考下面的参考连接。

Conclusion

整个过程不是很顺利,首先是按照官方的文档进行操作,windows会有奇怪的问题,于是改成了配置文件操作;
接着是windows的权限问题,整得很头疼;
现在是3个etcd服务器都跑起来了,但是etcdctl又用不了,第二天换成windows cmd line又可以了,当时用的是git bash;

Reference

Update

关于etcd与redis数据存储方面的疑问

etcd是分布式存储,强调是是节点之间的通信与同步,确保个节点上数据和事务的一致性,本身的单节点写入能力不强。
redis节点之间强调的是数据的一致性,并不在乎事务,所以读写能力很强,且支持的存储数据结构比较丰富,以及提供了例如incr,排序之类的东西。

关于redis的问题

redis主从之间的数据同步会有延迟,前不久遇到有人用redis替代rocketmq来做某些东西。
正式放到外网的时候出现了bug,多方研究发现内网是单节点redis,外网是redis cluster,连接到的sential数据有一定的几率数据更新不及时。
